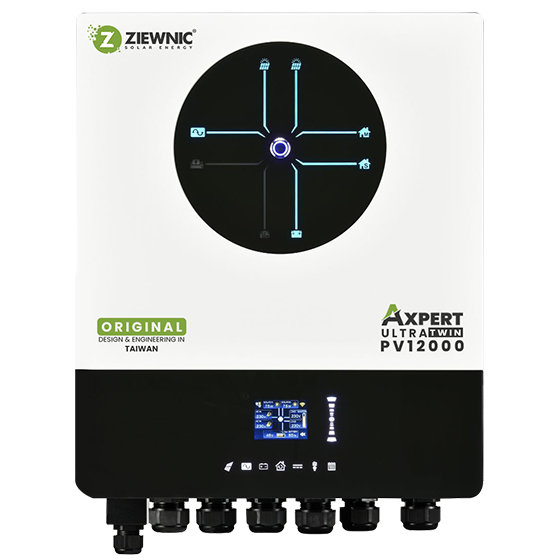

ZIEWNIC AXPERT 11KW PV 12000

Description

Rated Power 11000VA/11000W
Parallel Capability YES, 6 units
AC Input
Voltage 230 VAC
Selectable Voltage Range 170 – 280 VAC (For Personal Computer)
Frequency Range 90 – 280 VAC (For Home Appliances)
AC OUTPUT
AC Voltage Regulation(Batt. Mode) 230VAC ± 5%
Surge Power 20000 VA
Efficiency (Peak) 93%
Transfer Time 10ms (Personal Computer) ; 20 ms ( For Home Appliances)
Waveform Pure Sine Wave
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Power 12000W (6000W X 2)
MPPT Range @ Operation Voltage 90 ~ 450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum PV Input Current 27A x 2 (MAX 40A)
Maximum Solar Charge Current 150A
Maximum AC Charge Current 150A
Maximum Charge Current 150A
PHYSICAL
Dimension D x W x H (mm) 145 x 438 x 553.6
Net Weight (Kgs) 18.4
Communication Interface USB/RS232/RS484/WiFi/Dry-Contact/BTS Support optional GFCI, Rapid Shutdown, AFCI detection
External Current Sensor Port Yes, built-in current transformer sensor
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
STANDARD
Compliance Safety CE
