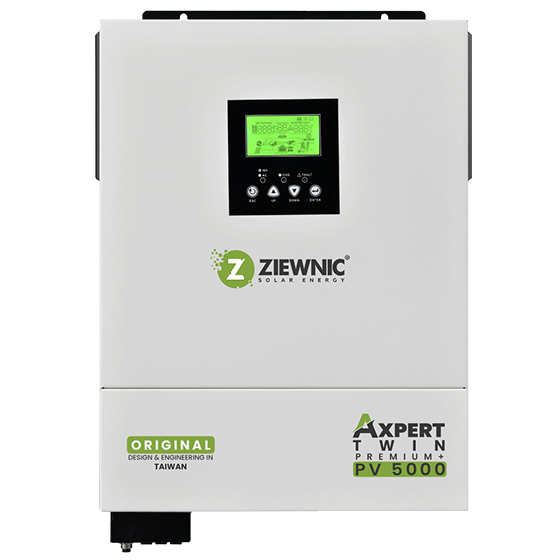

ZEIEWNIC PREMIUM PLUS HYBRID 4.2KW (PV5000)

Description

SPECIFICATION
Rated Power 4200VA/4200W
AC Input
Ac Input 230 VAC
Voltage 170~280 VAC (For Personal Computer)
Selectable Voltage Range 90~280VAC (For Home Appliances)
Frequency Range 50 HZ / 60 HZ (Auto Sensing)
AC OUTPUT
AC Voltage Regulation(BATT. MODE) 230 VAC ± 5%
Output Power 4200W with PV & Battery, 4000W with battery onl
AC Output No. DUAL
Surge Power 8400VA
Efficiency (Peak) 93%
Transfer Time 10ms Typical(MS); 20ms Stapical( Appliances)
Waveform Pure Sine Wave
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 32 VDC
Maximum AC Charge Current 100A
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 450VDC
Maximum PV Array Power 5000W
Maximum PV Input Current 18A
MPPT Range @ Operation Voltage 90 – 450VDC
Maximum Solar Charge Current 120A
Maximum AC Charge Current 100A
Maximum Charge Current 120A
PHYSICAL
Dimension D x W x H (mm) 120 X 300 X 440
Net Weight (Kgs) 09
Communication Interface RS232/RS485(BMS)/WIFI
ENVIRONMENT
Humidity 5% TO 95% RELATIVE HUMIDITY (NON-CONDENSING)
Operating Temperature -10°C TO 50°C
Storage Temperature -10°C TO 50°C
