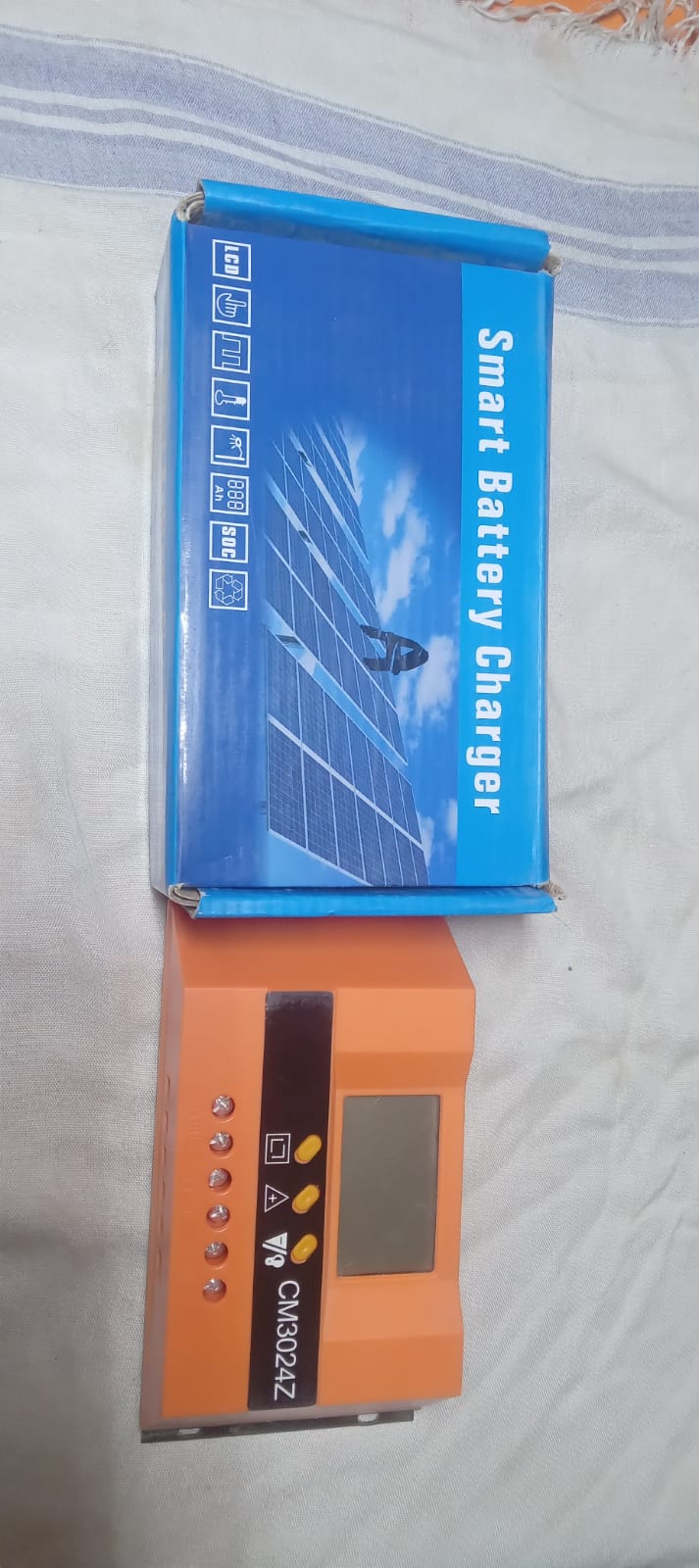

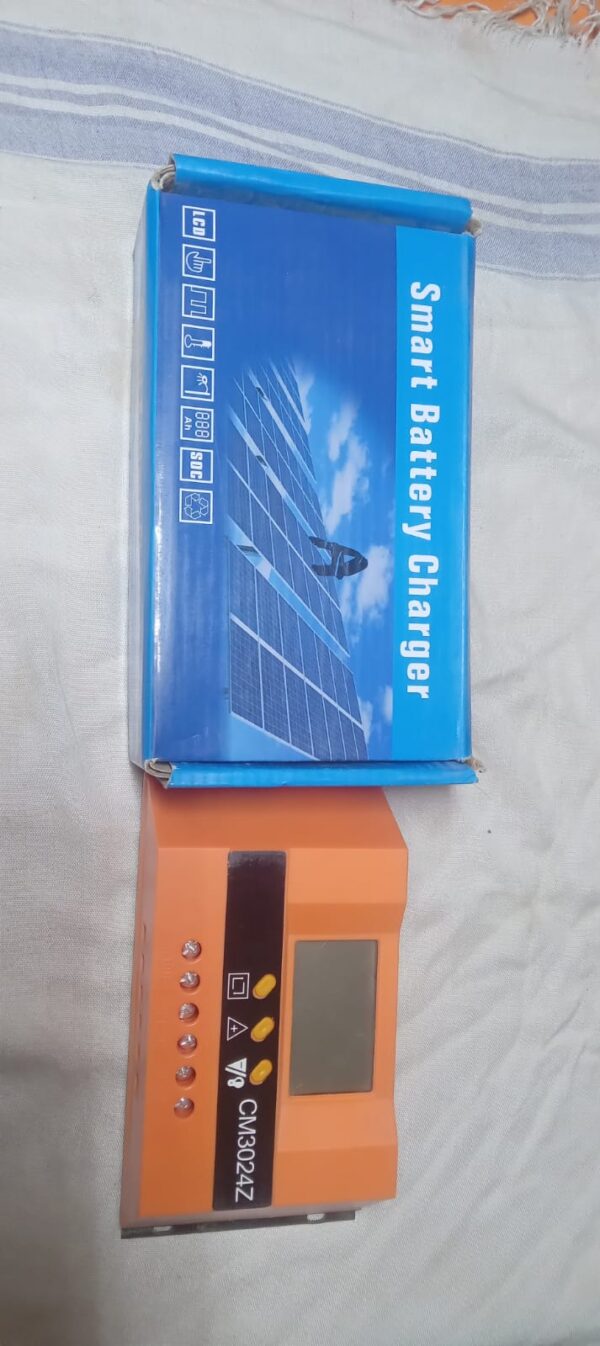

Smart Battery Charger 30 AMP PWM Solar Charge Controller

Description

Smart Battery Charger 30 AMP PWM Solar Charge Controller – Full Description

Overview
The Smart Battery Charger 30 AMP PWM Solar Charge Controller is a high-performance and reliable solar charge controller designed to optimize battery charging while protecting the battery from overcharging, deep discharge, and other potential issues. This intelligent controller is ideal for solar power systems used in RVs, boats, cabins, off-grid homes, and industrial applications.

Key Features
✅ 30A Maximum Charging Current – Efficiently handles solar panels with a capacity of up to 30A, making it suitable for medium to large solar energy systems.

✅ PWM Charging Technology – Utilizes Pulse Width Modulation (PWM) to ensure efficient charging, extend battery life, and prevent overheating.

✅ Multiple Battery Compatibility – Supports 12V and 24V battery systems, automatically detecting and adjusting to the appropriate voltage. Compatible with Lead-Acid, Gel, Flooded, and AGM batteries.

✅ Advanced Protection Mechanisms – Includes built-in safety features such as:

Overcharge Protection
Over-discharge Protection
Short-Circuit Protection
Reverse Polarity Protection
Temperature Compensation for enhanced performance
✅ LCD Display & LED Indicators – Features an easy-to-read LCD screen displaying real-time data, including battery voltage, charging current, and system status. LED indicators provide quick visual cues for system health.

✅ User-Friendly Controls – Simple navigation buttons allow users to adjust settings such as load control, charging parameters, and battery type selection.

✅ Dual USB Ports – Equipped with 5V USB ports for directly charging small electronic devices like smartphones, tablets, and GPS units.

✅ Load Control Function – Supports DC load output for running low-power DC appliances directly from the controller.

✅ Durable & Weather-Resistant Design – Built with high-quality materials and an IP-rated enclosure for durability in harsh environments. Ideal for outdoor and remote installations.

Technical Specifications
Rated Current: 30A
System Voltage: 12V/24V Auto-detect
Max Input Voltage: 50V (Solar Panel)
Max PV Input Power: 400W (12V) / 800W (24V)
Charging Method: PWM (Pulse Width Modulation)
USB Output: 5V / 2.1A
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: ≤95% (non-condensing)
Enclosure Protection: IP30 or higher (varies by model)
Applications
Off-Grid Solar Systems (Cabins, Homes, Sheds)
RV, Camper, and Marine Solar Systems
Solar Street Lighting & Security Camera Systems
Agricultural & Industrial Solar Power Solutions
Backup Power Systems
Package Includes
1 x 30A PWM Solar Charge Controller
1 x User Manual
1 x Set of Installation Screws
Why Choose This Controller?
This Smart Battery Charger 30A PWM Solar Charge Controller is a cost-effective, efficient, and user-friendly solution for managing solar power and extending battery lifespan. Its advanced protections, digital display, and easy-to-use controls make it a great choice for both beginners and experienced solar users.

🔋 Get reliable and efficient solar charging today!
