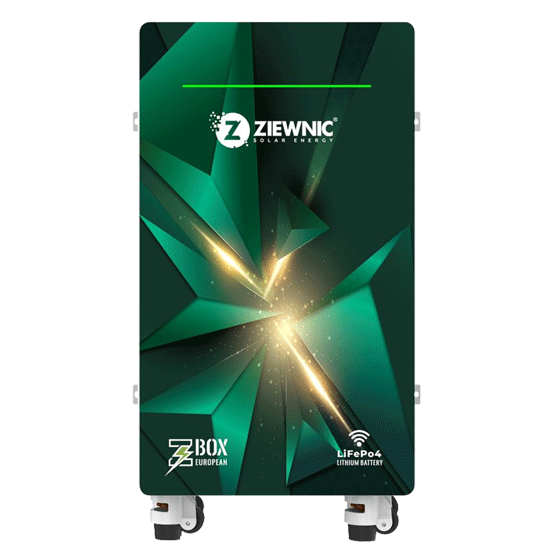

NEW WALL STAND LITHIUM BATTERY EUROPEAN 280AH-51.2V

Description

SPECIFICATION
Case design Floor Standing / Wall Mount
Battery Type LiFePO4
Normal Battery Voltage(Vdc) 51.2V
Normal Capacity (25 C 0.2C) (Ah) 280A
Normal Capacity (25C 0.2C) (WH) 14,400WH
Standard Charge Voltage / Power 56.0V / 15680W
Operation Voltage range / Cut-Off / Battery Full 44.8V ~ 58.4V
Max Continuous Discharge Current(A) 200A
Parallels Function Support 16 Units in Parallels
Max Continuous Charge Current(A) 200A
Cells brand / Cycle Life BYD >8000 Cycles (80% DOD)
Charging Temperature Range / Discharging 0~65°C / -20~65°C
Wi-Fi Module Built-In
Storage temperature 0°C ~ 30°C
IP degree IP54
Storage duration 3 Months at 25°C
Safety standard UN38.3, MSDS
Communication Port (Optional) RS485, RS232/USB, CAN
PROTECTION
Protection Over Charge Protection, Over Discharge protection, Over Current Protection, Short Circuit Protection, Over Temperature Protection
DIMENSION
LxWxH (mm) 490*840*242mm
Weight(GW Kg) 123KG
